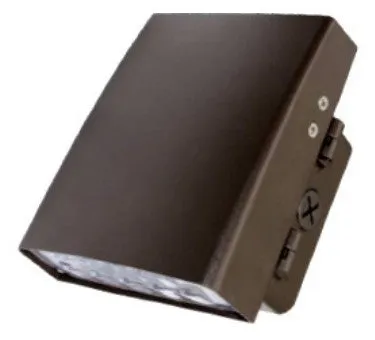

The ELEDWPCA series is a contemporary, commercial-grade area luminaire. It features a heavy-duty, spring-loaded hinge, which provides the flexibility of focusing light near the mounting surface or projecting light forward. With a die cast aluminum housing and a polycarbonate lens, the ELEDWPCA series will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID area lights.

FEATURES:

• Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures
• Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70)
• Delivers 1,250 lumens and 106 lumens per watt (LPW) at both 3000k & 4000k, and 1,321 lumens and 111 LPW at 5000k
• Heavy-duty, spring-loaded hinge provides the flexibility of focusing light near the mounting surface or projecting light forward
• Universal 100-277 AC voltage (50-60Hz) is standard
• Watertight, compression-type electrical connectors prevent moisture intrusion
• Die cast aluminum housing with durable, dark bronze, powder coat paint
• Durable, UV-resistant polycarbonate lens
• Removable, threaded plugs for side attachment of ½” rigid electrical conduit, or for button photocells
• Easy installation in new construction or retrofit

SPECIFICATION:

• Color Temperature: 3000k, 4000k, 5000k
• CRI 1: >80
• Luminaire Lumens: 1,250, 1,321
• Luminaire Watts: 12
• Lumens Per Watt: 106
• Input Voltage: 120-277 (50-60Hz)
• Input Current (A): 120V: 0.10, 240V: 0.05, 277V: 0.04
• Power Factor: >90%
• THD3: <20%
• L70Hours4: 69,000

VERTICAL ADJUSTABILITY:

• Heavy-duty, spring-loaded hinge provides vertical adjustability of the luminaire housing up to 65
• Adjustability provides for a range of lighting effects from full-cutoff downlight to forward throw
• Knurled notches securely retain rotated position even in demanding environments

WARRANTY & LISTINGS:

• cULus listed for wet locations (-20°C to 40°C / -4°F to 104°F)
• IP65 rated
• Complies with FCC Part 15 class B
• Complies with EN61000-4-5, surge immunity (1kV)
• 5-year warranty
