The Trine 4300CC series electric strike kit is the versatile 4-7/8" solution for cylindrical and deadlatches.
Features:
- Tallest latch cavity in its class - at 2 - 13/16" the 4200 offers almost twice the latch height compared to the competition
- Poe-friendly electric strike - 0.240 Amps at 12DC and 0.114 Amps at 24DC
- Runs cool all the time, no need for an external "pac" to reduce strike temperature under continuous duty
- Contains a one-piece locking mechanism with one solenoid -- fewer parts means less problems
Specifications:
| Frame Material | Wood or Hollow Metal |
| Mounting | For Surface mount installations |
| locking state | fail-secure (power to unlock) |
| Product type | for use with surface-mounted locks |
| max latch length - inches | maximum 3/4 inch throw |
| Pull strength - lbs | 1000 - 1500 LBS |
| Voltage and duty INT | Selectable 12/24V AC/DC int |
| Voltage and Duty CONT | Selectable 12/24V DC |
| UNSPSC code | 31162407 |
| Endurance | 500,000 cycles |
| Static Strength | 1,500 lbs |
| Dynamic Strength | 70ft/lbs |
| Finish | Dark Bronze Powder Coat 32D |
| Backset | 1-1/16" |
4300 Electrical Characteristics:
| Voltage | Current Draw | Power Consumption | Resistance |
| 12DC | .310 Amps | 3.72 Watts | 39 Ohms |
| 24DC | .140 Amps | 3.36 Watts | 171 Ohms |
| 12AC @50-60Hz | .280 Amps | 3.36 Watts | 39 Ohms |
| 16AC @50-60Hz | .380 Amps | 6.08 Watts | 39 Ohms |
| 24Ac @50-60Hz | .550 Amps | 13.20 Watts | 39 Ohms |
When removing the connector and using the wires direct;
-
Blue wire is common
- Red wire accepts 12DC & 12-16AC
- Brown Wire accepts 24DC
Package Includes:
- (1) 4300 Electric Strike mechanism

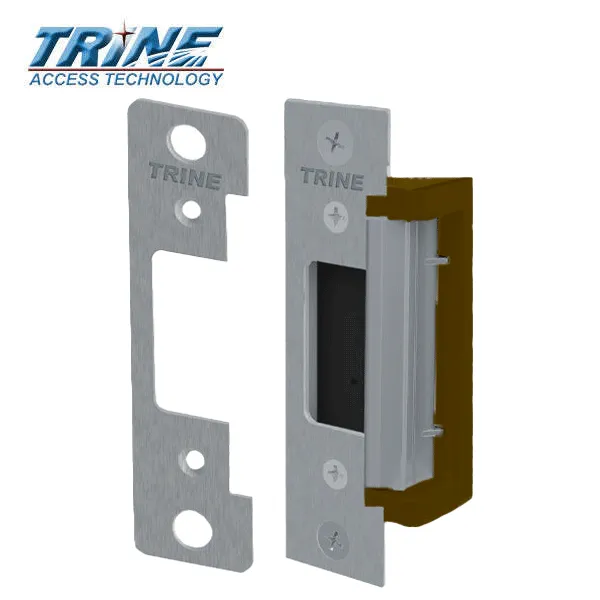

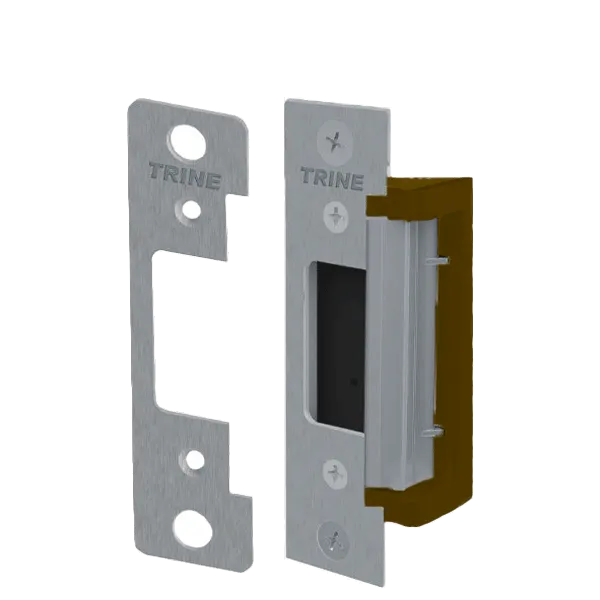

- (2) faceplates as shown
- (4) #12-24 x 1/2 inch Phillips mounting screws
- (2) #8-32 Faceplate mounting screws
- (2) Quick connect socket & wire assembly 12VDC & 24VDC version
- (2) Sealed Crimp Connectors
- (1) Frame Trim Skirt & (2) screws
- (2) Mounting tabs
